LIFT

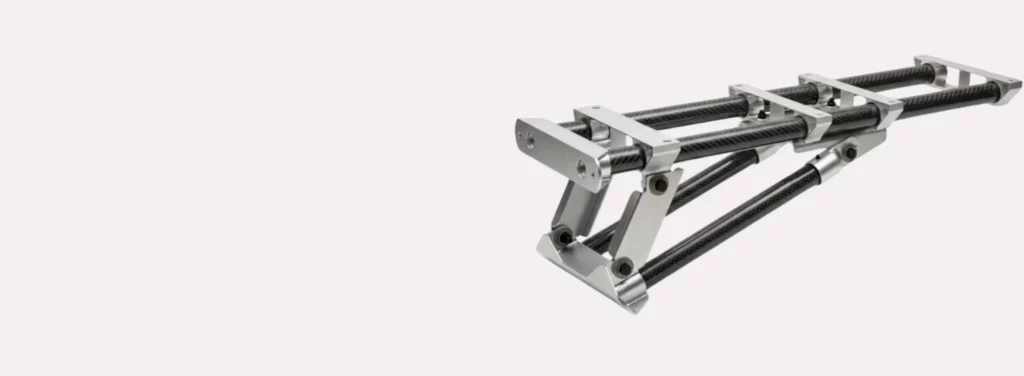

Lightweight Cantilever Technology
LIGHTWEIGHT TECHNOLOGY
Patented bonded carbon-fibre tubes and aluminium joints combine low weight with outstanding robustness.
VERSATILE ARCHITECTURE
Dimensions can be adjusted for configurations from a single seat to a large double seat. Mounting interfaces adapt to a wide range of train platforms and seat configurations.
CANTILEVER BY DESIGN
Designed for fast cleaning, easy luggage storage, and seamless interior integration.

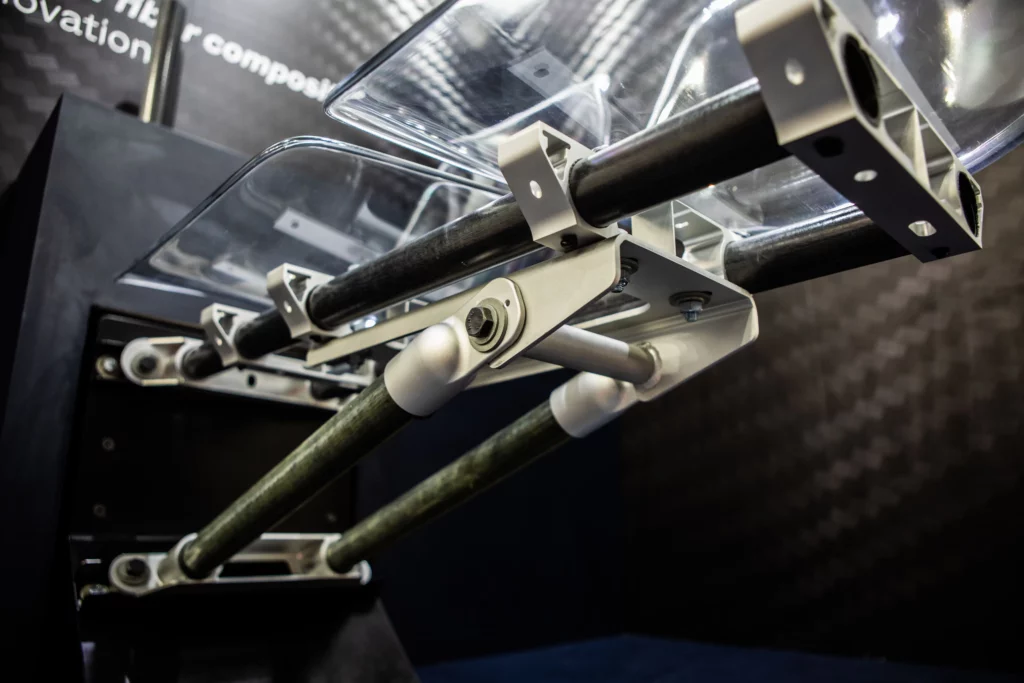

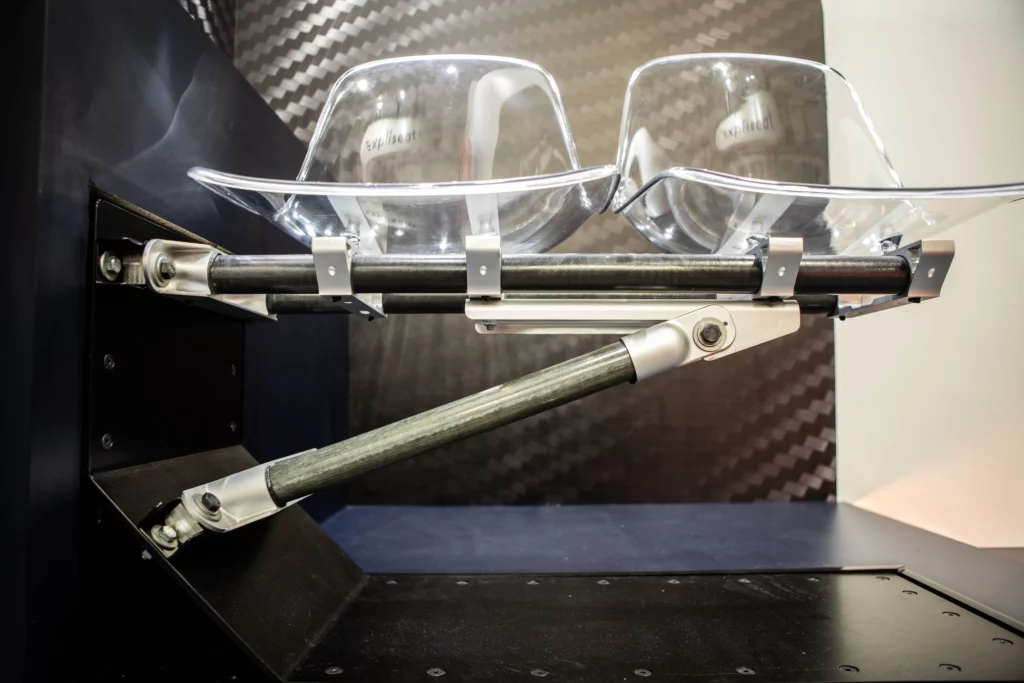

* Transparent seats shown are trade show demo models used to test structural robustness.
KEY TECHNICAL ADVANTAGES
Up to 50% lighter than an equivalent conventional structure.
Highly adaptable architecture tailored to custom railway requirements.
High strength and durability through advanced materials.
Easy access for maintenance and inspection.
Ready to order for immediate platform integration.
CUSTOMISABLE PRODUCT FEATURES
Train Interface: Adaptable to a wide range of train platforms.
Seat Mounting: Compatible with single- and double-seat configurations.
Tailored Dimensions: Carbon-fibre tube lengths and aluminium joint positions can be customized to meet specific length, width, and height requirements.

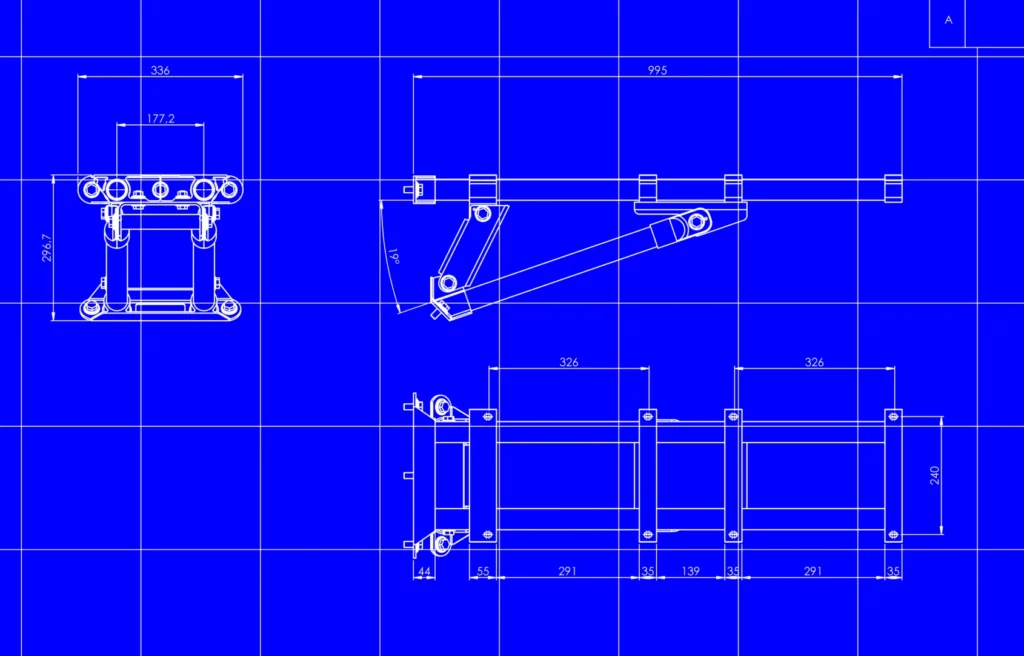

STANDARD DIMENSIONS
Total Length: 995 mm
Top Width: 336 mm (Inner distance: 177.2 mm)
Height: 296.7 mm
Fixing Spacing: 326 mm / 291 mm
RAILWAY CERTIFICATIONS & COMPLIANCE
LIFT meets the highest safety, fire, and structural standards required by international railway operators
EN 45545 R6 HL2
UIC 566
DB GrulaSi
EN 12663-1
GM/RT 2100
NF F 31-119
Ready to
Upgrade your rail seating?
Contact our engineering team today to adapt the LIFT cantilever structure to your specific seating platforms
